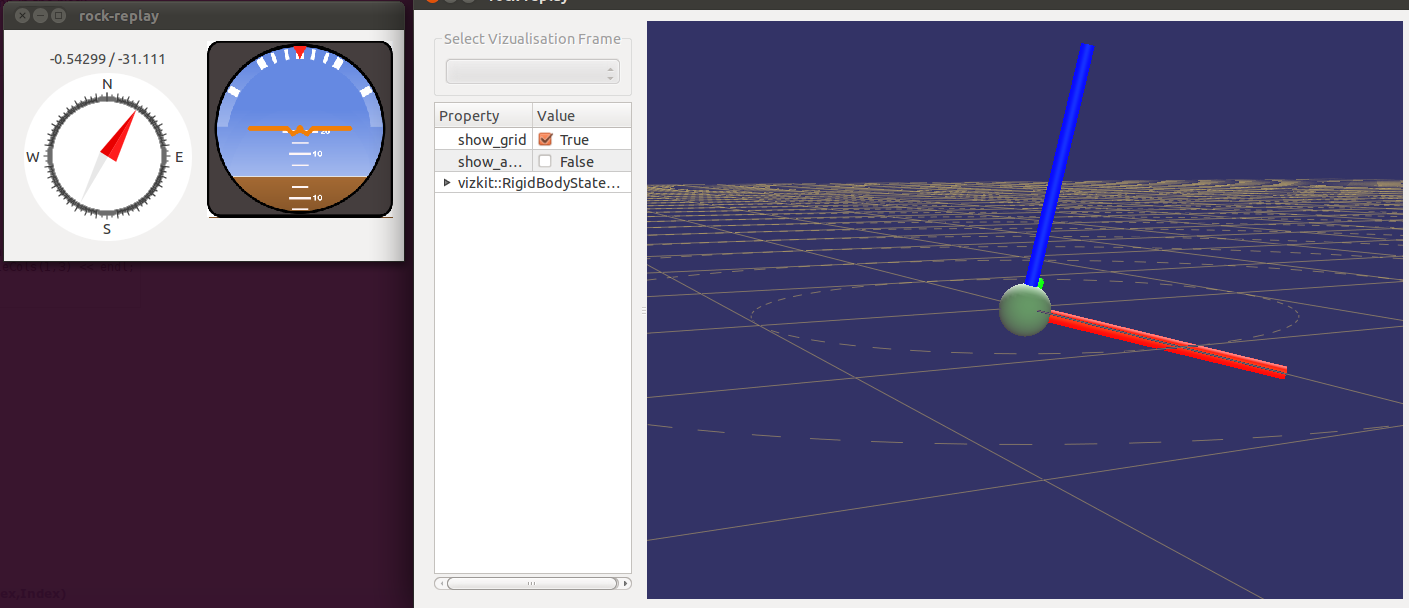

Here a picture of the inconsistency of these frames in rock.
Javier.
-------- Original Message --------
Subject: [Rock-dev] OrientationView Widget - Unclear coordinate system
Date: Fri, 12 Oct 2012 20:06:38 +0200
From: Javier Hidalgo Carrió <javier.hidalgo_carrio at dfki.de>
Organization: DFKI - Robotics Innovation Center
To: rock-dev at dfki.de
Hi,
The OrientationView Widget of rock does not follow the standard rock
coordinate frame. (x pointing forward, y pointing left and z pointing
up) and the right-handed positive rotation.
http://en.wikipedia.org/wiki/Cartesian_coordinate_system#In_three_dimensions
For example, if we have a negative pitch angle (along Y-axis) following
right-handle positive rotation the widget should depict the pitch up
w.r.t a level position (because is negative) and right now the
representation is down.
Could someone verify this and tell us where is this representation made?
Thanks,
Javier.
