[Rock-dev] vizkit3d: fixing interpretation of transformer configuration
Javier Hidalgo Carrió
javier.hidalgo_carrio at dfki.de
Thu May 22 19:24:53 CEST 2014
Hi Alex,
The visualization stays the same. But the interpretation of the
transformer configuration changes for vizkit3d only.
>
> Former:
> static_transform(Eigen::Vector3.new(0.0,0.0,3.0),
> Eigen::Quaternion.from_euler(Eigen::Vector3.new(Math::PI,0,0),2,1,0),"world"
>
> => "body")
>
> must no be written as:
> static_transform(Eigen::Vector3.new(0.0,0.0,3.0),
> Eigen::Quaternion.from_euler(Eigen::Vector3.new(Math::PI,0,0),2,1,0),"body"
>
> => "world")
It works for me when using static transformations. But, regarding
dynamic transformations:
Does it also apply to the dynamic transformations given by a rbs on an
output port?
Former:
dynamic_transform "vicon.pose_samples", "world" => "body"
with rbs.sourceFrame = "world"
with rbs.targetFrame = "body"
must now be written as:
dynamic_transform "vicon.pose_samples", "body" => "world"
with rbs.sourceFrame = "body"
with rbs.targetFrame = "world"

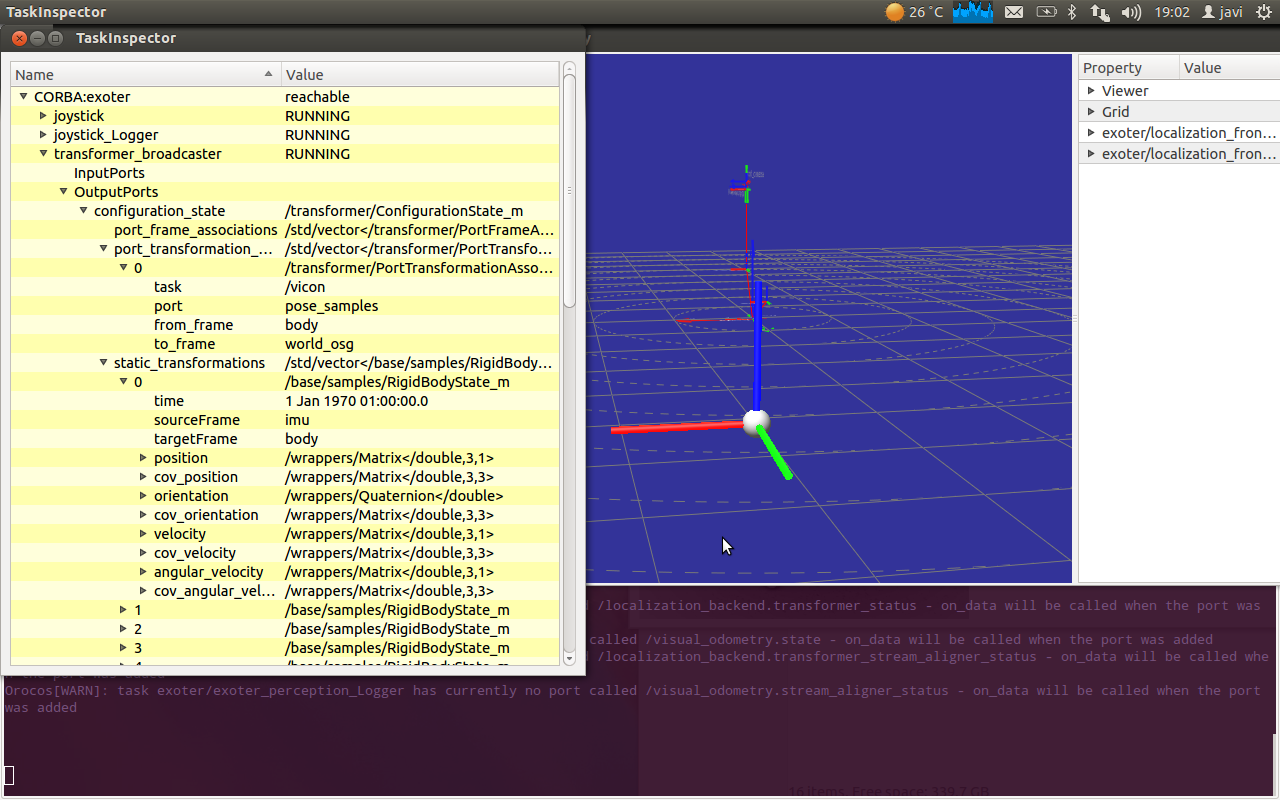

However, in the transformer_broadcaster the frames for dynamic
transformation are called from_frame and to _frame.
I am not making it work with the new interpretation. Did anyone already
try it?
Thanks,
Javier.
>
> to have the same visualization in vizkit3d (this is aligned with the
> transformer)
>
> Greets Alex
-------------- next part --------------
A non-text attachment was scrubbed...
Name: transformer_broadcaster.png
Type: image/png
Size: 265808 bytes
Desc: not available
Url : http://www.dfki.de/pipermail/rock-dev/attachments/20140522/d9ee9ebd/attachment-0001.png
