I was a bit annoyed about the non existing live plotting capability of
rock therefore I added a new

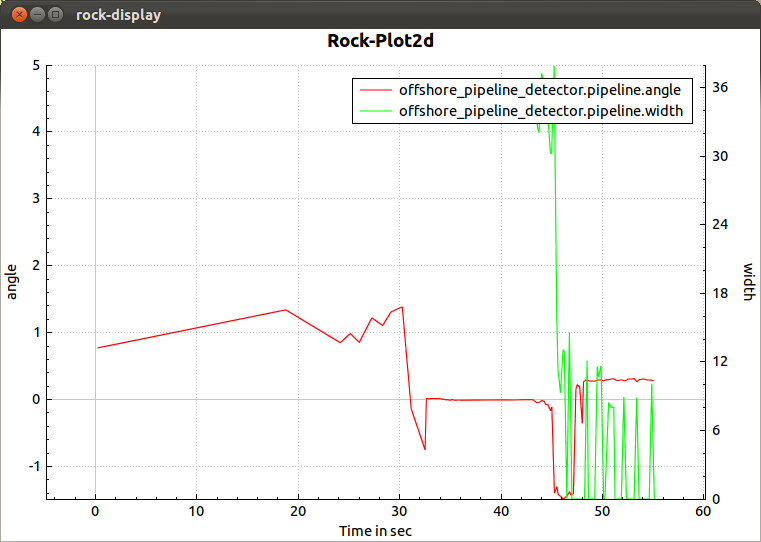

Plot2d widget and a script for live plotting.
you can now do:
rock-plot task_name.port_name.field_name:field_name2 ...
to plot data on the fly
The widget is also integrated into the TaskInspector. If you do a right
click on an any float or integer value of a
typelib type you can select the Plot2d widget from the pull down menu.
Greets
Alex
--
