[Rock-dev] next Wednesday: splitting vizkit into vizkit and vizkit3d

[Alexander Duda]

Hi,

I split gui/vizkit into two packages gui/vizkit and gui/vizkit3d.
Thereby, the ruby related part stayed in vizkit and the c++ vizkit3d
related part went into vizkit3d. This splitting was necessary to
simplify the process of building  Debian packages for rock.

I am planing to push the changes to the following packages by Wednesday
if no one has a good reason not to do so:
* base/types (hosts now all base visualizer)
* base/cmake (update macros for vizkit3d plugins)
* gui/vizkit (remove vizkit3d related parts)
* gui/vizkit3d (hosts now vizkit3d related parts)
* slam/envire (update to vizkit3d)
* slam/orogen/graph_slam (update to vizkit3d)
* image_processing/stereo (update to vizkit3d)

This change will hit all people maintaining vizkit3d plugins because to
not mess up the install location of vizkit3d the namespace and install
loacation was changed from vizkit to vizkit3d. Therefore, all vizkit3d
plug-ins most be updated according to the following steps.

* rename namespace and include path from vizkit to vizkit3d
* if base visualizer are used within the plugin
     * link against base-viz instead of vizkit-base-viz
* if loadData,saveData methods are overloaded by the plug-in
     * remove the methods they are no longer supported
     * in the long run QSettings should be used
* if setPose is overloaded by the plug-in
      * change setPose(const base::Vector3d &position, const
base::Quaterniond &orientation) to
         setPose(const QVector3D &position, const QQuaternion &orientation)

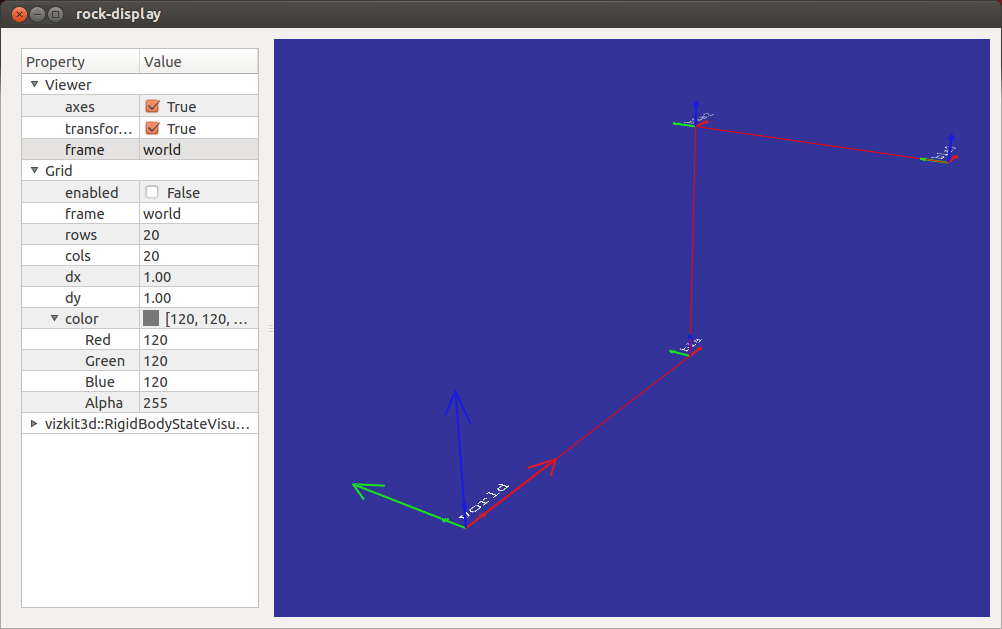

Furthermore vizkit3d got a small update:
* transformer can now be visualized as wire frame
* camera is now always looking to the frame centre when custom
visualization frame is selected
* each plug-in has a property for its visualization frame
* remove dependencies to base/types, base/scripts, external/yaml-cpp,
drivers/transformer
* move all base type visualizer to base/types/viz
* fix a lot of display issues when custom visualization frame is selected

Greets
Alex

--
